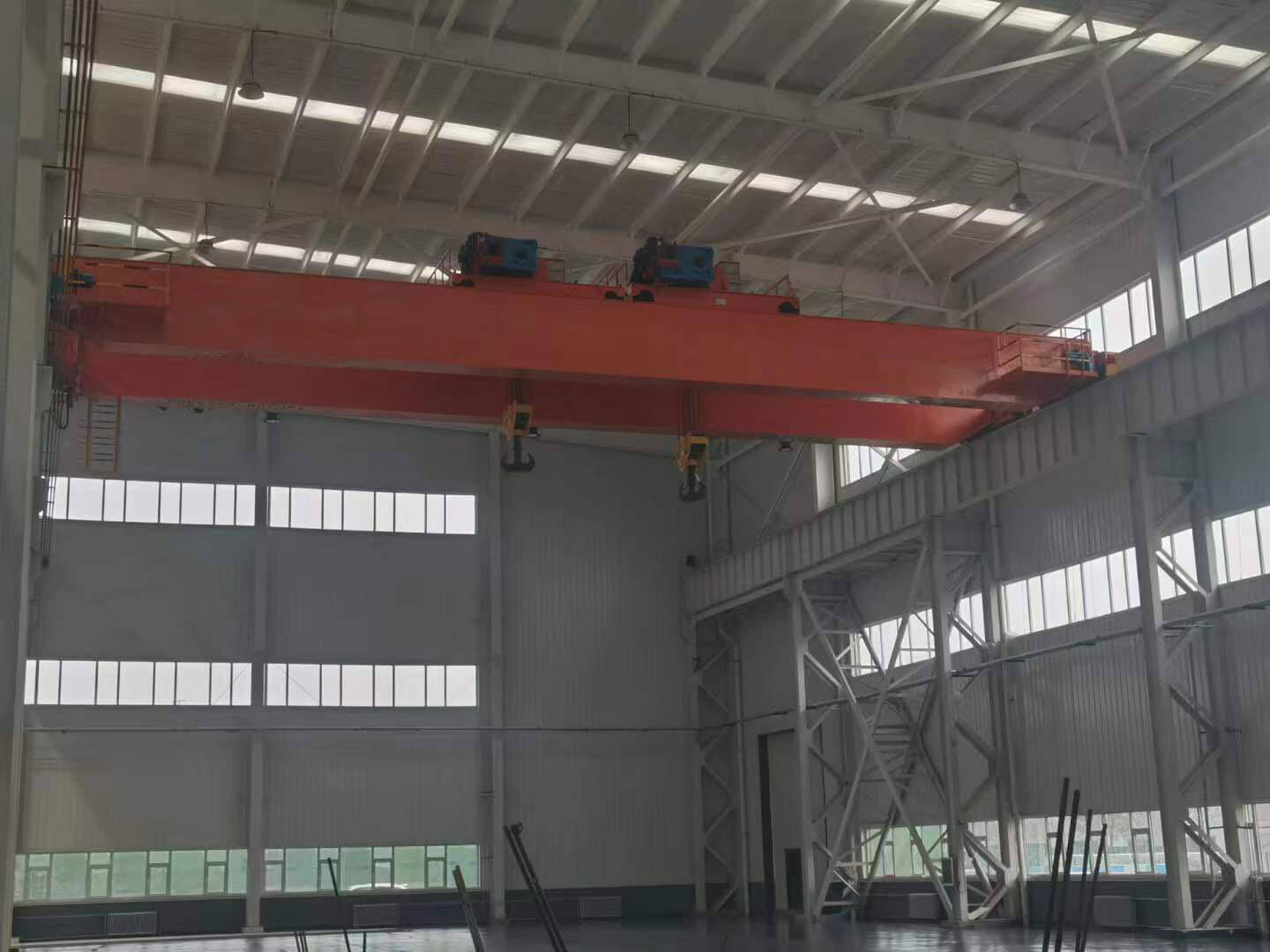

The Structure and Function of Double Girder Cranes

Core Structural Design of Double Girder Cranes

Main Girder Structural Form and Cross-Section (Box Girders, I-Beams, H-Beams)

Double girder crane strength depends largely on how the main girders are set up, which can be box girders, I beams, or H beams depending on what's needed. Box girders tend to get chosen when lifting really heavy stuff because they resist twisting better and spread out stresses more evenly across the structure. These can handle bending forces over 740 kilonewtons per square meter according to recent industry reports from Ponemon in 2023. For lighter workloads where money matters more than maximum strength, I beams work just fine as an economical option. And then there are H beams that stand out when dealing with big spans between supports since they carry weight vertically much better than other types. Many construction sites actually switch between these different beam configurations based on specific job requirements and budget constraints.

Girder Design in Overhead Cranes and Its Impact on Load Distribution

Double girder setups work really well for overhead cranes because they spread out the weight across two beams instead of just one. This actually cuts down on stress points by around 30 to 40 percent when compared to those single beam designs. The extra support makes these systems much more reliable structurally speaking. They also meet those ISO 8686 requirements about how much the metal can bend under pressure. This matters a lot in places like steel mills and shipyards where what needs lifting changes all the time and the crane has to handle different weights moving in various directions throughout the day.

Stress and Strength Analysis Under Operational Loads

Finite element analysis (FEA) shows that properly designed double girder cranes sustain ฀0.1% permanent deformation under maximum-rated loads when incorporating structural redundancy. Dynamic load testing confirms durability, with welded box girders enduring over 100,000 cycles at 85% of SWL (Safe Working Load), validating long-term fatigue resistance.

Span, Deflection Limits, and Torsional Rigidity Considerations

Deflection is typically limited to 1/750 of the span length to prevent trolley derailment—equating to 40 mm for a 30-meter span. In facilities involving off-center or side-pulling operations, torsional rigidity becomes critical; box girders are often specified to limit twist angles to <0.5°, ensuring stability during asymmetric lifts.

Material Selection for Crane Girders (Steel Grades, Weldability, Fatigue Resistance)

High-strength low-alloy (HSLA) steels like ASTM A572 Gr. 50 are standard in girder fabrication, offering yield strengths of 345 MPa and Charpy V-notch toughness above 27 J at -20°C. Welding follows AWS D1.1 standards, with post-weld heat treatment applied in high-stress zones to eliminate residual stresses and enhance fatigue life.

Key Components and System Integration in Double-Girder Overhead Cranes

Structural Components: Main Girder, End Trucks, Hoist, Trolley, and Control System

Double girder overhead cranes bring together five essential parts to create a solid lifting system that gets the job done. The main girder itself is usually made from either box type steel or H beam construction, acting as the backbone that supports everything else. At each end we find those trucks with their powered wheels that let the whole thing move back and forth along the runway beams. Then there's the hoist trolley between the girders which does all the actual lifting vertically, coordinated by control systems that make sure everything moves smoothly together. What makes these cranes stand out? They handle wind forces much better than lighter models, somewhere around 25 to 40 percent improvement actually. That kind of durability matters a lot when installing them outside where weather conditions can be unpredictable.

Integration and Alignment of Double-Girder Bridge Crane Configurations

Precise alignment is essential for balanced load distribution and reduced mechanical wear. Modular steel pin connections allow ±3 mm tolerance in girder-to-end-truck joints, streamlining assembly and minimizing on-site installation time. The twin-girder layout inherently delivers 2–3 times greater torsional rigidity than single-beam designs, preventing racking during off-center or dynamic lifts.

Function and Operating Mechanism of Double Girder Cranes

Double beam cranes offer a solid base for trolleys that need to move across entire spans. Light duty cranes are usually limited to around 20 tons max, but these heavier duty double girder models can actually lift over 80 tons thanks to their synchronized lifting systems. When it comes to operation, workers control how fast things get lifted, generally between 3 and 30 meters per minute, while also moving the whole crane along its tracks. They do this either from a handheld controller or sitting in the operator's cabin. The system has sensors built in too, which constantly monitor weight and automatically tweak motor power so everything stays positioned accurately, typically within about 5 millimeters either way.

Load Capacity, Span, and Lifting Performance Optimization

Beam Sizing and Material Selection for Load Capacity Optimization

Getting the most out of structural loads really comes down to how beams are shaped and what materials go into them. These days, high strength steel grades like ASTM A572 Grade 50 (which has a minimum yield strength of around 50 ksi) are pretty much everywhere in construction projects. They work well because they can be welded without issues while still standing up to repeated stress over time. Speaking of which, box girders actually perform about 12 to maybe even 18 percent better when it comes to twisting forces compared to regular I-beams according to some research from Parker Steel back in 2023. That makes sense why engineers prefer them for things that need extra durability, especially where there's constant movement involved like in large metal structures or parts of power plants that see regular wear and tear.

Load Capacity Standards Versus Real-World Performance

While ISO 8686-1 establishes baseline capacity ratings, real-world operations in harsh environments like steel mills often require 15–20% overcapacity margins to accommodate dynamic loading and thermal stress. Double girder cranes maintain structural integrity under these conditions, exhibiting ฀0.1% deformation even under sustained 80-ton lifts thanks to redundant load paths.

Span Capabilities in Large-Scale Industrial Facilities

Standard 35-meter double girder spans reduce column density by 40% in aircraft hangars compared to single girder alternatives, enabling more flexible floor planning. Emerging composite steel-aluminum girders now achieve L/1000 deflection control at spans up to 45 meters—critical for retrofitting automotive assembly lines where unobstructed workspace is essential.

Hook Height and Lifting Range Influenced by Girder Configuration

Double girder bridge cranes give operators about 1.2 to almost 2 meters extra headroom because the trolley runs between two beams instead of hanging under one main girder. This extra height makes all the difference when dealing with tall loads like those massive 15 meter wind turbine blades that need plenty of vertical space to clear obstacles. The design also has another benefit worth mentioning. When manufacturers use parallel flange beams, they can actually extend the working area horizontally by roughly a fifth compared to standard setups. This happens mainly because engineers can position counterweights more strategically and achieve better weight distribution across the entire system.

Double Girder vs. Single Girder Cranes: Functional Advantages and Industrial Use Cases

Comparative Analysis: Light Crane System Limitations vs. Double Girder Superiority

Single girder cranes, sometimes called light duty systems, work well for lighter loads typically under 20 tons and can cover distances up to around 60 feet. However they aren't as strong when it comes to twisting forces and don't handle bending as effectively as other options. Double girder models take a different approach by using two parallel beams side by side. This setup spreads out heavy weights much better across larger areas. These heavier duty machines can actually handle over 300 tons worth of cargo and stretch across spaces exceeding 120 feet long. What's really impressive is how little they bend even under such extreme conditions, staying within just 1/800th of their total length according to recent industry data from the Material Handling Report published last year.

Key advantages of the dual-beam design include:

• 30–40% higher hook heights due to inter-girder trolley placement
• Enhanced fatigue resistance using high-grade structural steels (S355JR/S460ML)
• Reduced load sway during high-speed transport of bulky or irregular items

When to Choose a Double-Girder Crane for Demanding Industrial Applications

Double girder cranes are best suited for applications involving:

• Heavy loads (>20 tons) with frequent duty cycles (¥60%)
• Extended spans (>80 feet) in steel plants or shipbuilding facilities
• Corrosive or outdoor environments requiring durable, weather-resistant construction

Industries such as automotive stamping and aerospace manufacturing rely on these systems for precision handling of oversized or asymmetrical components, maintaining tight positional tolerances (±5 mm). The inherent structural redundancy also simplifies integration of specialized tooling, including magnetic lifters and robotic positioning arms.

Innovations and Future Trends in Double Girder Crane Engineering

Smart Control Systems and Advanced Double-Girder Bridge Crane Configurations

Today's double girder cranes are starting to come equipped with smart control systems powered by IoT technology. These systems help improve how well the cranes work by keeping an eye on their structure in real time. Inside those big steel beams called box girders, there are strain gauges and displacement sensors that constantly watch for any bending or stress issues. When these sensors detect that the crane is getting close to its safe deflection limits, they automatically slow down the hoisting speed to prevent damage. The system also uses adaptive algorithms that look at past usage patterns to figure out the best paths for the trolley to take. This approach cuts down on torsional stress somewhere around 18 to maybe even 22 percent compared with older methods of operating these machines.

Automation and Digital Twin Integration in Modern Crane Operations

The adoption of digital twin tech has taken off across industries, with companies building virtual copies of crane systems to run simulations and diagnose issues before they happen. Engineering teams can safely experiment with challenging situations like complex multi-axis lifting operations at full extension points without putting actual machinery or workers in danger. Steel manufacturers reported around a 30 percent drop in welding failures after implementing predictive maintenance through these digital models according to recent industry reports from 2023. This improvement means fewer production halts and better workplace safety for facilities running non-stop operations throughout the day.

FAQs

What types of beams are used in double girder cranes?

Double girder cranes typically use box girders, I beams, or H beams based on the requirements. Box girders are preferred for heavy-duty applications, while I beams offer an economical option for lighter workloads. H beams are ideal for large spans due to their vertical load-bearing capabilities.

Why are double girder setups preferred in overhead cranes?

Double girder setups distribute weight across two beams, reducing stress points by 30-40% compared to single beam designs. This increases structural reliability and compliance with ISO 8686 standards, making them ideal for dynamic environments such as steel mills and shipyards.

How is material selected for crane girders?

Materials like high-strength low-alloy steels (e.g., ASTM A572 Gr. 50) are standard for crane girders. These materials offer excellent yield strength, weldability, and fatigue resistance, essential for withstanding the demanding conditions of crane operations.

What are the key advantages of double girder crane systems?

Key advantages include higher hook heights due to inter-girder trolley placement, enhanced fatigue resistance using high-grade structural steels, and reduced load sway during high-speed transport of bulky or irregular items.
