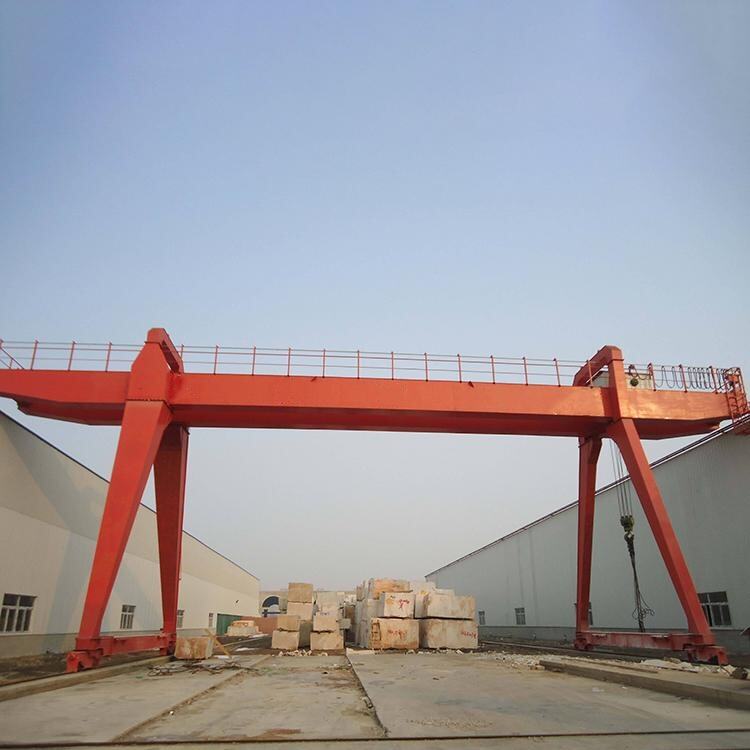

Modular Gantry Crane for Flexible Factory Layouts

Modular Gantry Crane for Flexible Factory Layouts

Our gantry crane features a modular design where all crane components are standard modules that can be flexibly combined and expanded like building blocks to match the needs of each workstation. This gantry crane allows for easy assembly into various configurations of capacities, spans, lifting heights, and working duties (A3 to A8), with lifting mechanisms including CD/MD electric wire rope hoists and electric chain hoists. Widely used in machinery assembly lines, automotive plants, and logistics centers, the gantry crane delivers smooth, low-sway operation and can be operated via ground control, remote control, or cab control. Certified by ISO, CE, and SGS, the gantry crane is delivered with a 1-year warranty and tailored to your facility's unique layout requirements.
Get A Quote

Advantages

High Site Utilization

Gantry cranes feature a ground rail-mounted design that maximizes outdoor space usage in ports, railway freight yards, and mining sites. With large span (up to 30 meters) and lifting height capabilities, gantry cranes efficiently handle containers, bulk materials, and oversized equipment, offering comprehensive coverage for high-volume cargo handling operations.

Heavy-Duty Lifting Capability

Designed with dual-girder structures, gantry cranes can lift loads of up to 600 tons, making gantry cranes ideal for heavy machinery transportation, shipbuilding, and industrial manufacturing. Anti-sway technology ensures stable cargo movement, reducing the risk of damage during handling in busy logistics environments.

Automation and Remote Operation

Gantry cranes can be equipped with GPS positioning, IoT sensors, and remote control systems for real-time logistics tracking and unmanned operation. This integration enhances efficiency in smart ports and automated storage facilities, reducing human intervention and improving handling speed in high-throughput environments.

Related products

Specialized in manufacturing 20t double-girder gantry cranes VIEW DETAILS

Specialized in manufacturing 20t double-girder gantry cranes

CD wire rope electric hoist VIEW DETAILS

CD wire rope electric hoist

High-quality rail-mounted single-girder gantry crane VIEW DETAILS

High-quality rail-mounted single-girder gantry crane

1000 kg 2 Ton Overhead Crane System Flexible Beam Monorail Free Standing Light Bridge Crane VIEW DETAILS

1000 kg 2 Ton Overhead Crane System Flexible Beam Monorail Free Standing Light Bridge Crane

The 6 ton gantry crane strikes the perfect balance between robust lifting strength and operational flexibility for mid-range industrial applications. This capacity is ideal for heavy machining facilities that need to lift and position large molds and machine components without the overwhelming size and cost of 10+ ton cranes. The 6 ton gantry crane is typically designed as a single girder system, featuring a high-quality steel structure that is both portable and powerful. It is commonly used for moving heavy stone, metal pieces, and bulk materials in factories and foundries. The crane specifications often include a lifting height of up to 17 meters and a span of up to 30 meters, with power supply options of 380V and remote control capability for safe, long-distance operation. The crane features a hard face gear and an IP55 motor with H-class insulation and 60% ED rating, suitable for heavy-duty cycles. For a customized 6 ton gantry crane with specific rail or span requirements, please contact our manufacturing department.

Frequently Asked Questions

What are the main advantages of using a gantry crane in ports?

In ports, gantry cranes offer several key advantages. They have a high load capacity, enabling them to handle large shipping containers with ease. Their wide span and height allow for efficient stacking and unstacking of containers. The ability to move along rails or on rubber-tired wheels provides flexibility in navigating the port area. They also enhance productivity by facilitating quick loading and unloading of ships, reducing turnaround times and improving overall port operations.
Besides ports, gantry cranes are beneficial in various industries. In shipyards, they are used for constructing, repairing, and launching vessels by moving heavy components. Construction sites use gantry cranes to lift and transport large building materials such as prefabricated panels and steel beams. Warehouses and logistics centers employ gantry cranes for handling and storing heavy goods, optimizing space utilization. Mining operations can also use gantry cranes for moving heavy equipment and materials within the mining area.
A gantry crane with rubber-tired wheels offers greater mobility and flexibility as it can move freely within a larger area without being restricted by fixed rails. It can change its position more easily to access different work areas. In contrast, a gantry crane on rails has a more fixed path of movement but provides higher stability and precision when moving along the rails. The rail-mounted crane is better suited for operations that require repetitive movement along a specific route, while the rubber-tired one is ideal for more dynamic work environments.
The lifting mechanism of a gantry crane typically consists of several components. The hoist, which can be an electric or hydraulic hoist, is responsible for lifting and lowering the load. A trolley is mounted on the horizontal beam of the gantry and moves along it to position the hoist over the load. The rope or chain is wound around the hoist drum and connects to the lifting hook or attachment. Additionally, there are control systems and safety devices such as limit switches and overload sensors that ensure the safe and efficient operation of the lifting mechanism.
