Electric Hoist vs Chain Hoist: Which One to Choose?

How Electric and Chain Hoists Work: Mechanisms and Power Requirements

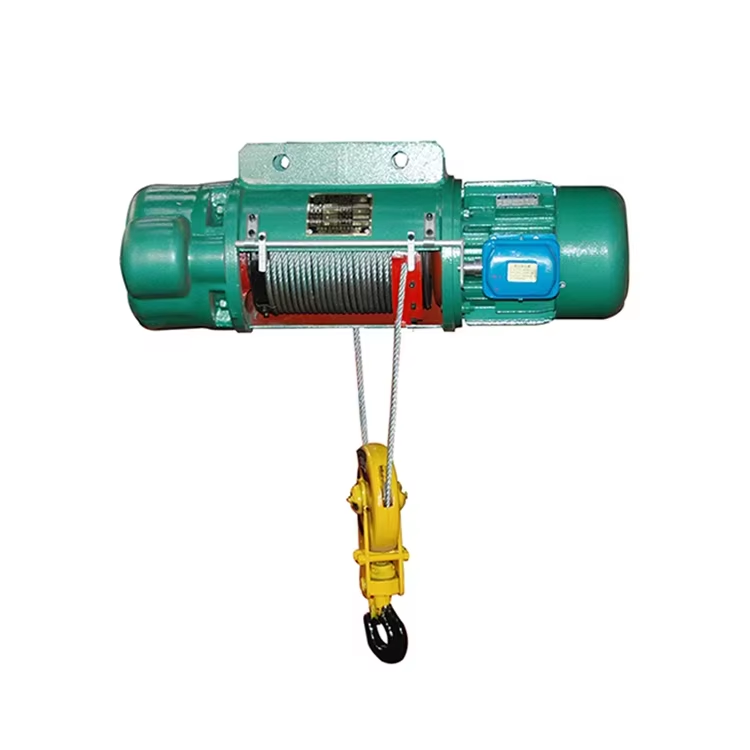

How Electric Hoists Operate Using Motorized Power Systems

Electric hoists convert electrical energy into mechanical lifting force through induction motors paired with electromagnetic brakes that engage automatically during power loss, ensuring load stability. Industrial-grade models can lift over 5 tons at speeds up to 35 ft/min, making them well-suited for high-volume environments like assembly lines and warehouses.

The Manual Chain Hoist Working Principle and Mechanical Advantage

Manual chain hoists use a hand-pulled chain to drive internal gears, leveraging mechanical advantage—typically 10:1 or higher—to enable one person to lift 2–20 tons. These systems require no electricity, offering reliable performance in remote locations or applications such as gate hoist operations where power access is limited.

Key Operational Differences Between Electric and Chain Hoists

Electric hoists offer faster lifting, greater precision, and higher workload capacity but depend on continuous power and regular motor maintenance. Manual hoists provide portability and simplicity, trading automation for lower initial costs and zero energy consumption.

Power Requirements and Site Readiness for Electric vs Manual Hoists

Electric hoists need stable 110V–480V power sources and dedicated circuits, while manual hoists deploy instantly without infrastructure. Facilities with unreliable grids often pair both types—using electric units for fixed stations and manual hoists for mobile tasks like outdoor gate maintenance or emergency repairs.

Load Capacity, Lifting Speed, and Performance in Real Applications

Maximum Load Capacity of Chain Hoists in Industrial Applications

Industrial manual chain hoists can handle up to 20 tons, delivering precise control in steel fabrication and machinery maintenance. However, their capacity caps at this level, making electric hoists the better choice for loads exceeding 30 tons.

High-Speed Lifting Efficiency of Electric Hoists Under Heavy Loads

Motorized electric hoists lift 10-ton loads at 15–20 ft/min—three times faster than manual alternatives—while maintaining stability. This speed is crucial in automotive assembly lines, where rapid material handling supports strict production cycles.

Speed and Efficiency Comparison in Repetitive or High-Cycle Tasks

In warehouse environments requiring 50+ lifts daily, electric hoists improve throughput by 40% and reduce operator fatigue. Manual hoists remain preferred for precision work such as turbine blade alignment, where fine control outweighs speed.

Cost Analysis: Upfront Price vs Long-Term Value of Ownership

Initial Purchase and Installation Costs: Electric vs Manual Chain Hoists

Electric hoists cost 2–4 times more than manual models, with industrial units ranging from $2,500 to $12,000 compared to $800–$3,000 for manual versions. Installation adds significant expense—electric systems often require professional mounting, electrical upgrades ($800–$5,000), and safety inspections. Manual hoists only need anchoring points and basic training.

Maintenance Simplicity and Lower Downtime in Manual Hoists

Manual hoists require minimal upkeep: quarterly lubrication and annual load testing. Their gear-driven design experiences 72% fewer failures than motorized systems (Lifting Equipment Journal 2023), resulting in just 3–6 maintenance hours per year versus 24–48 for electric hoists. This reliability is especially valued in construction, where 83% of contractors prioritize durability over advanced features.

Energy Consumption and Ongoing Operational Expenses of Electric Models

Electric hoists operate at 3–10 m/min compared to 0.5–2 m/min for manual models, but their 1–5 kW motors incur $450–$1,100 in annual energy costs for frequent users. In intermittent-use scenarios, 20–30% of energy is wasted on startup cycles (Energy Efficiency Institute 2022), further increasing operational expenses.

Are Electric Hoists Worth the Investment? Evaluating Total Cost of Ownership

The math works out for electric hoists when they handle around 600 lifts each year or more since the boost in productivity makes up for their higher price tag. On the flip side, places that only need to move things less than 200 times annually will actually save money long term by sticking with manual options instead. Looking at gate hoist situations specifically, if daily operations involve fewer than ten lifts, going manual is still the better bet financially speaking. These older style hoists don't consume any electricity and have simpler mechanics which means less maintenance headaches. This becomes really important for facilities located far from power sources or in remote areas where reliable grid connection isn't possible.

Portability, Installation, and Use in Constrained or Remote Workspaces

Mobility Advantages of Manual Chain Hoists in Tight or Remote Locations

Manual chain hoists pack a lot of strength into small packages, making them great choices when working in tight spots, on odd job sites, or where there's just no electricity available. No need to plug anything in means these tools can be deployed fast for fixing things overhead in those cramped factory corridors or lifting parts around out in the wilderness somewhere. A recent report from the Material Handling Industry back in 2023 found something interesting too: about seven out of ten field techs put portability right at the top of their list when they're dealing with projects that move around from place to place. Makes sense really, considering how often jobs pop up where traditional equipment just won't fit.

Installation Complexity and Space Needs for Electric Hoist Systems

Electric hoists require reinforced mounting structures, three-phase power (in 89% of industrial units), and unobstructed vertical clearance—adding 15–30% to installation time and cost. Retrofitting older facilities with outdated beams or wiring can delay deployment and diminish the efficiency benefits of motorized lifting.

Gate Hoist Applications Where Portability and Ease of Setup Are Critical

Manual chain hoists are standard in agricultural, mining, and flood control gate systems due to their adaptability. They can be mounted directly onto existing frames or temporary supports without welding or electrical work—essential when rapidly deploying flood barriers or adjusting irrigation gates across large rural areas.

Safety, Durability, and Ideal Use Cases for Each Hoist Type

Built-in Safety Features of Electric Hoists: Overload Protection and Control Systems

Electric hoists include automatic overload sensors that stop operation at 110% of rated capacity (Ponemon 2023), along with emergency stops, speed controls, and integrated monitoring. The Hoist Manufacturers Institute recommends these features for high-risk environments such as foundries and automotive plants.

Fail-Safe Operation and Manual Control Precision in Chain Hoists

With no reliance on electricity, manual hoists eliminate risks of electrical failure. Their mechanical design allows millimeter-level positioning accuracy, essential for aligning delicate gate components or sensitive machinery. Operators maintain direct tactile feedback, reducing the risk of sudden load shifts during maintenance.

Durability in Harsh Environments: Low-Maintenance Benefits of Manual Hoists

Free of motors and electronics, manual hoists outlast electric models by 43% in extreme conditions like steel mills (2024 Material Durability Report). Simple steel chains and alloy hooks need only periodic lubrication, making them resilient in dusty, wet, or corrosive settings such as wastewater plants and agricultural gate installations.

When to Choose Electric vs Chain Hoists: Production Lines vs Maintenance Tasks

Electric hoists dominate repetitive manufacturing tasks, lifting 2–8 tons at 12 m/min for continuous production. Manual hoists are favored for maintenance: 78% of facility managers use them for gate repairs, bridge inspections, and short-cycle lifts under 5 tons, according to industry lifting surveys.

Case Insight: Automotive Plant Transitioning From Manual to Electric Hoists

An automotive manufacturing facility located in the heartland saw a dramatic drop in workplace injuries when they swapped out 37 old manual hoists for electric versions. The investment of around $1.2 million dollars paid off pretty quickly too, cutting down the time workers spent lifting engine blocks from roughly 8 whole minutes down to just over a minute and a half. Management got their money back within 18 months thanks to these improvements. What's interesting is that they didn't completely discard the manual equipment either. Instead, they kept some of them around specifically for those special cases where customization was needed during installation. This mix of old and new tech actually worked better for everyone involved, making the shop floor safer while still keeping things running efficiently without breaking the bank.

FAQ

What are the main differences between electric and manual chain hoists?

Electric hoists offer faster lifting speeds, greater precision, and higher workload capacities, but they require a continuous power source and regular maintenance. Manual hoists are portable, require no electricity, and are simpler but have lower lifting speeds and capacities.

How much can industrial manual chain hoists lift?

Industrial manual chain hoists can lift up to 20 tons, making them suitable for tasks requiring precise control but not for heavier loads that exceed this capacity, which would require electric hoists.

What are the cost considerations for choosing between electric and manual hoists?

Electric hoists have higher upfront and installation costs but increase productivity. Manual hoists are cheaper initially, require less ongoing maintenance, and have no energy costs. The choice depends on the lifting frequency and operational environment.

How do electric hoists ensure safety?

Electric hoists come with built-in safety features like overload protection, emergency stops, and speed controls to prevent accidents during lifting tasks.

Where are manual chain hoists most beneficial?

Manual chain hoists are ideal for remote or constrained locations where portability is crucial, and electricity is unavailable. They are commonly used in agriculture, mining, and flood control operations.
