HD type electric single girder crane
Compact structure
Hook left and right limit position is small
Compact structure
Hook left and right limit position is small
item |
value |
Product name |
Wire Rope Electric Hoist |
Warranty |
1 year |
Customized support |
OEM |
Place of Origin |
Henan,China |
Lift Speed |
2~20m/min |
Sling Type |
Wire Rope |
Type |
Moveable |
Control method |
Remote |
Capacity |
3t-8t |
Application |
Lifting Industry |
Running speed |
0.8/5/min |
Lifting height |
6～24m |
Work class |
M5 |
Voltage |
220v~660v 50HZ/60HZ |

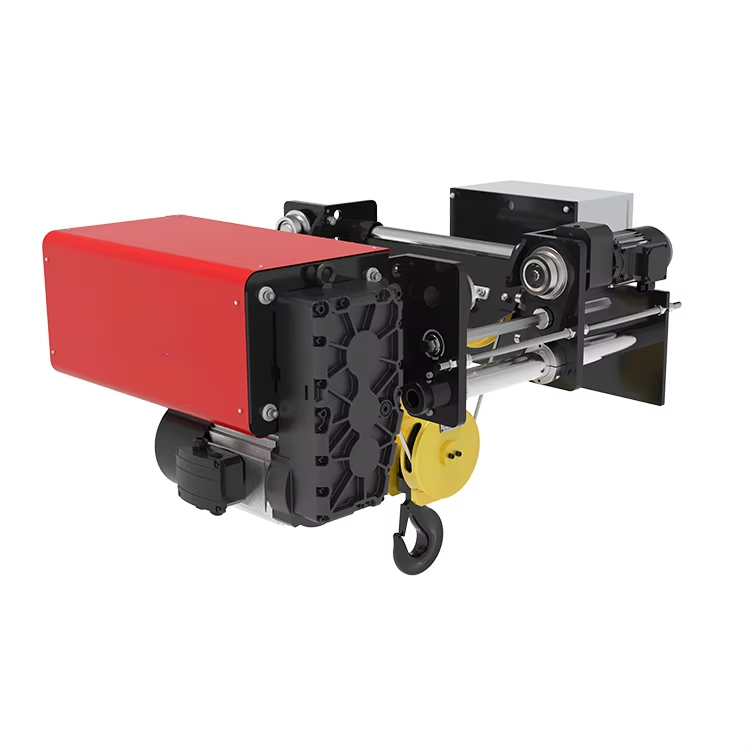

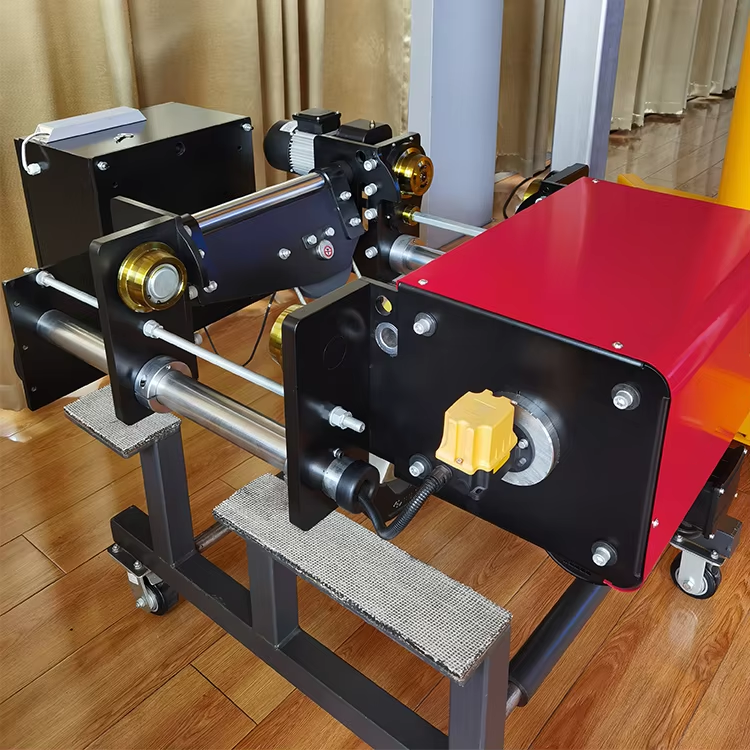

NR series low headroom hoist parameter table |
||||||||||||||
Lifting Capacity(t) |
Work duty |
Lifting speed
(m/min)
|
Lifting
height (m)
|
Number
of falls
|
Travelling speed
(m/min)
|
Hook
upper limit
H(mm)
|
Hoist width
W1/W2
(mm)
|
|||||||
3 |
M5 |
5/0.8 |
6~18 |
4/1 |
2~20 |
550 |
483/538 |
|||||||
5 |
M5 |
5/0.8 |
6~24 |
4/1 |
2~20 |
650 |
526/713 |
|||||||
10 |
M5 |
5/0.8 |
9~24 |
4/1 |
2~20 |
650 |
560/590 |
|||||||

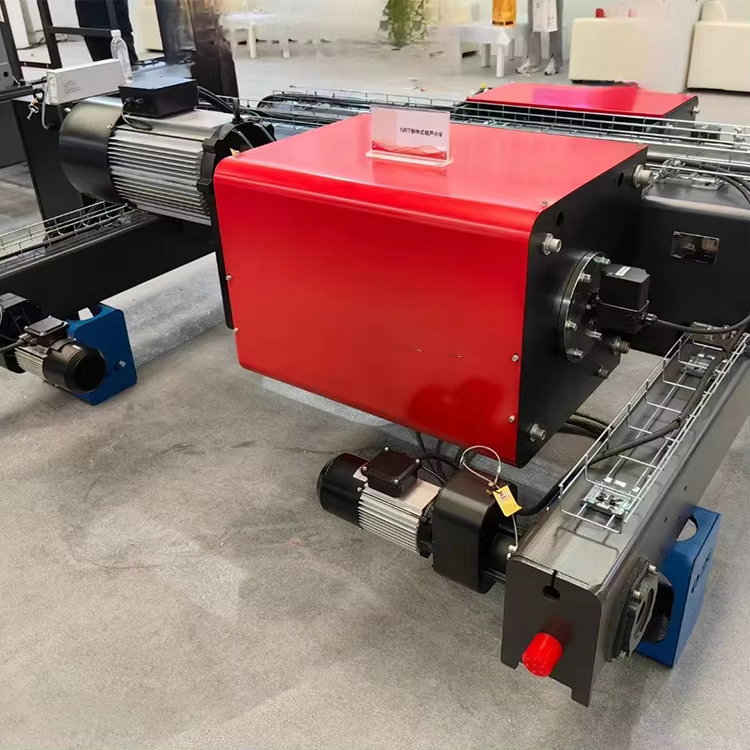

NRT series trolley parameter table |
||||||||||||||
Lifting Capacity(t) |
Work duty |
Lifting speed
(m/min)
|
Lifting
height (m)
|
Number of
falls
|
Travelling speed
(m/min)
|
Height of
trolley B(mm)
|
Hook upper
limit H(mm)
|
|||||||
5 |
M5 |
5/0.8 |
≤ 24 |
4/1 |
2~20 |
445 |
350 |
|||||||
10 |
M5 |
5/0.8 |
≤ 30 |
4/1 |
2~20 |
586 |
500 |
|||||||
16 |
M5 |
4/0.67 |
≤ 30 |
4/1 |
2~20 |
750 |
850 |
|||||||
20 |
M5 |
4/0.67 |
≤ 30 |
4/1 |
2~20 |
750 |
850 |
|||||||
32 |
M5 |
2.7/0.45 |
≤ 16 |
6/1 |
2~20 |
790 |
975 |
|||||||
32 |
M5 |
0.8~4.9 |
≤ 40 |
8/2 |
2~20 |
737 |
1400 |
|||||||
50 |
M5 |
0.53~3.2 |
≤ 26 |
12/2 |
2~20 |
840 |
1400 |
|||||||
80 |
M5 |
0.4~2.4 |
≤ 20 |
16/2 |
2~20 |
951 |
1500 |
|||||||
Q1: WHAT DO I NEED TO OFFER WHEN PURCHASING CRANES FROM YOU?
A1: There are some necessary parameters about the cranes so you can tell us the lifting height,loading weight,span and other details you have. We can offer you a best solution.
Q2:WHAT PAYMENT METHODS DO YOU HAVE?
A2: You can choose the best way to pay and we have many kinds payment method ,such as westlink, paypal, L/C, T/T. Don't worry about this problem.
Q3: WHAT AFTER-SALE SERVICE CAN YOU OFFER?
A3: We are a professional machinery company so we will offer 24/7 service and whenever you have any doubts just contact us. We are happy to help you fix them.
Q4: WHAT TRADE TERMS DO YOU USE?
A4: We often use FOB price and we can change according to your requirements.
Q5: HOW TO SHIP?
A5: The most often shipment method is by sea,which is cheaper than by air. It depends on clients' decision. We will try our best to help you.
